Ultra-Light High-Power Solar Panels for Solar-Powered UAV Applications

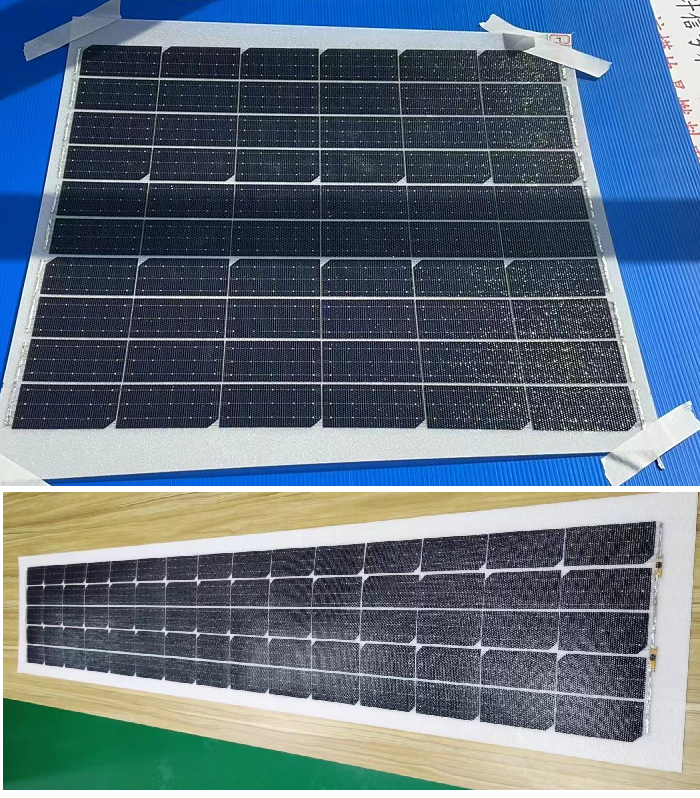

This product is a flexible, ultra-lightweight solar panel based on Silicon Heterojunction (SHJ) technology with advanced silver-wire interconnection. It is specifically designed for solar-powered UAVs, offering:

·High power-to-weight ratio

·Excellent mechanical flexibility

·Superior damage tolerance

·Reliable performance under extreme environmental conditions

【Technical Specifications】

·Solar Cell Technology: Hetero-junction Solar Cells (HJT).

·Solar Cell Efficiency: ≥25%.

·Inter-connection Technology：Super-wire Connection Technology with Flexible silver-wire (no welding) — 40× larger current collection area compared with conventional ribbon.

·Solar Panel Dimensions:Customizable .

·Solar Panel Thickness:1~1.5mm.

·Panel Areal Density: 500-600grams/square meter

·Specific Power Density :300-400Wp/kg

·

【Core Technology Advantages】

·High-Efficiency SHJ Solar Cells:The panels integrate Silicon Heterojunction (HJT) solar cells with a conversion efficiency of ≥ 25 % under standard test conditions (1 000 W/m²). HJT technology delivers excellent low-irradiance performance, typically generating more than 10 % additional energy compared with conventional cell technologies under overcast or high-altitude diffuse-light conditions.

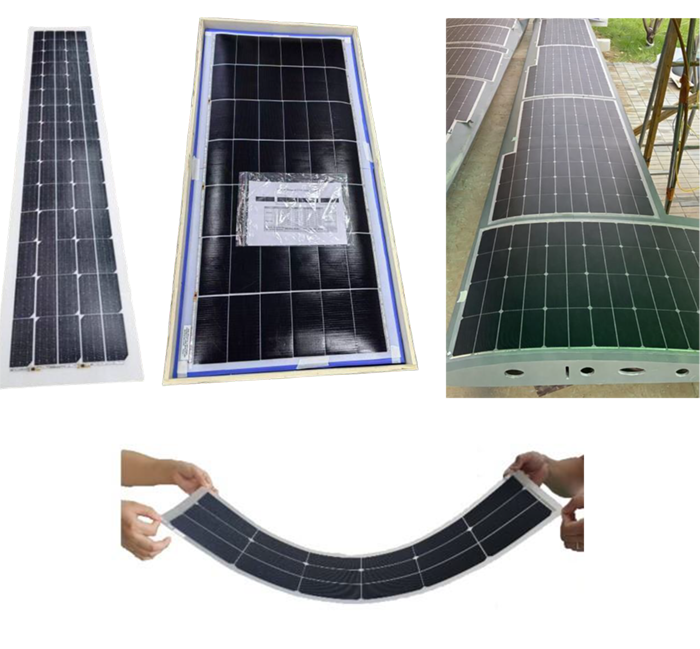

·Flexible Silver-Wire Interconnection:Solar cells within the panel are interconnected via a proprietary flexible silver-wire structure that significantly enhances mechanical reliability and provides superior resistance to cell cracking and mechanical impact.

·No-weld contact: Forms an ohmic contact with the TCO layer on the cell surface; no welding required..

·40× current area: Provides 40× larger current-conduction area compared with conventional ribbon welding interconnection, enabling current to bypass damaged regions even in the event of micro-cracks — thereby minimizing power loss..

【Customized Solutions】

We offer fully custom-engineered solar panel systems tailored to your UAV platform. All key parameters — wing geometry, system voltage, connector layout — are adapted for maximum aerodynamic and electrical integration efficiency.

【Application Scenarios】

·Fixed-wing UAVs.

·High-Altitude Platform Systems (HAPS)

·Near-space platforms.

【Typical Projects】

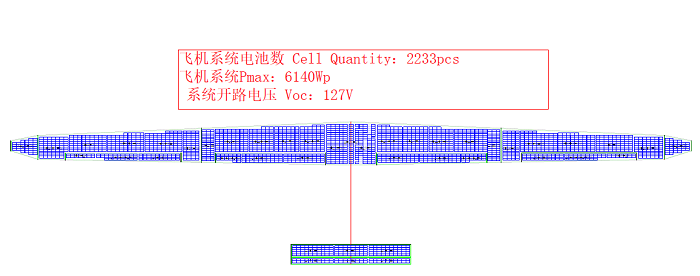

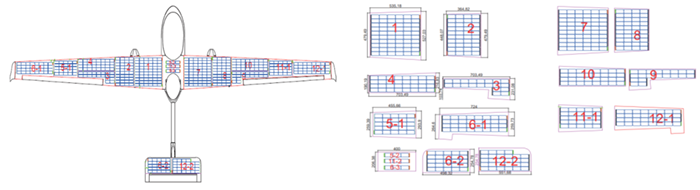

We offer custom-designed solar panel systems to suit various UAV platforms. Here are typical project examples:
