Flexible HJT Solar Panel

【Features】

·High-efficiency Hetero-junction Solar Cells (efficiency≥24.3%) are laminated inside with excellent weak-light performance and superior Power Temperature Co-efficient, which enable the flexible HJT solar panel to achieve 5-10% more power.

·Unique Super-wire Flexible Connection Technology ensures an excellent ability to resist solar cell crack and impact force. Even under extreme conditions, HJT solar cells and the panel still generate power as long as they are not destructively damaged.

·Laminated with FFC/PET/FFC thin film (Transparency≥90%) with excellent abilities to resist UV, low and high temperature, heat, humidity and salt spray. No Glass, no frame, ultra-thin and light-weight. Its thickness is 1.5-2.7mm. Panel`s weight is 1.5-3.1 kilogram per m2, which is only 20-30% of conventional glass modules. We offer various designs of shape and dimensions as per customers` requirements.

·3 by-pass diodes are inside to protect the whole panel, and to reduce power loss due to shadows.

·Easy and quick installation with the bonding method. No penetration or mounting. Perfect for commercial and industrial Low-load Bearing roofs, BIPV and Transportation application.

·All-black colored solar panels can be designed and produced to meet roof surface requirements, and they are most popular for roofs and BIPV projects.

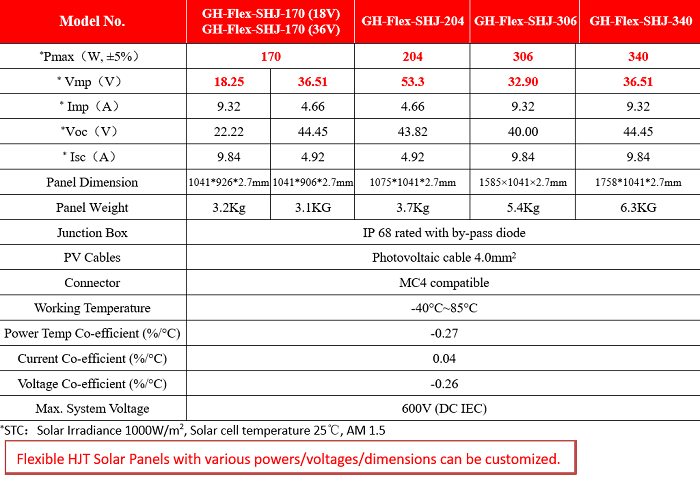

【Typical Specifications】

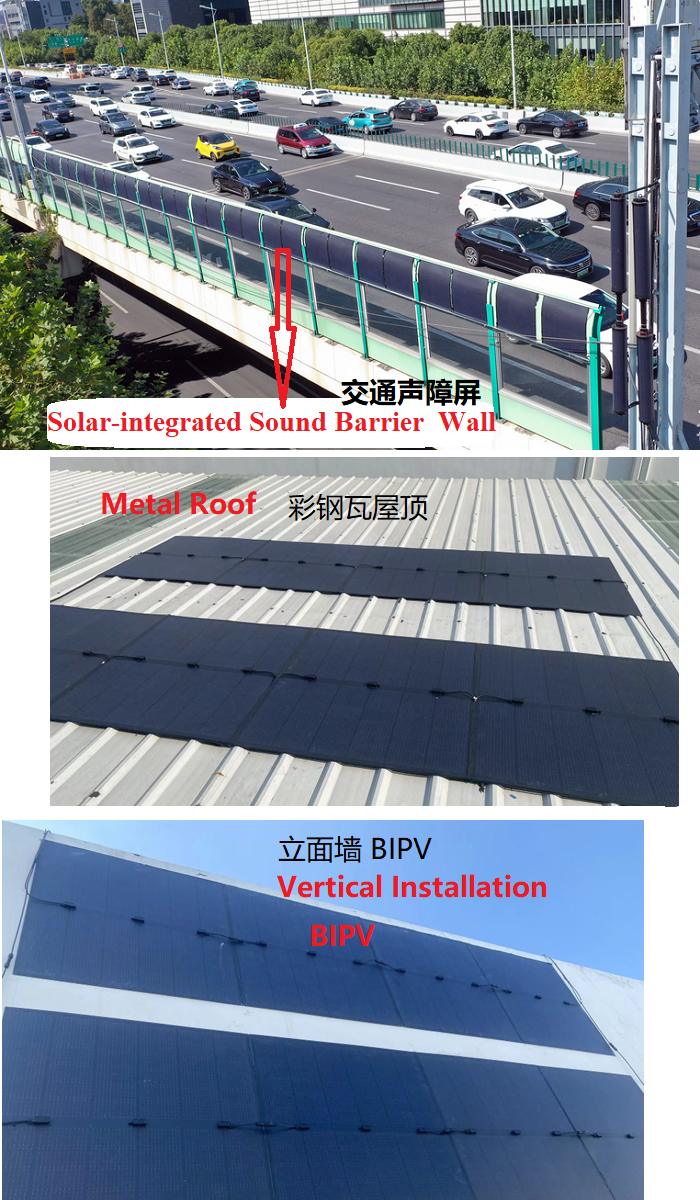

【Typical Application】
